MIL-STD认证是什么? 这对于强固式笔记本电脑和平板电脑意味着什么?
使用Getac MIL-STD解决方案,经验证可耐受极端温度、灰尘、湿气、振动、跌落和冲击,让严苛环境下的工作变得更简单。
![](https://www.getac.com.cn/wp-content/uploads/2023/01/getac_badge_230104.png)
MIL-STD是什么?
军用标准(MIL-STD)由美国国防部在二战后制定,针对工程和技术要求、工艺、程序、实践和方法规定了明确的统一要求,确保了军事工业的互操作性。MIL-STD认证专用于军用设备,现已成为极端环境耐用性的代名词。
MIL-STD认证意味着什么?
美国国防部(DOD)制定了一系列严格标准和全面的MIL-STD测试要求。只要设备通过测试,即获得MIL-STD认证。然而,许多声称已获得MIL-STD认证的产品实际上并未进行这些严格测试。好的验证方法就是要求提供测试方法和结果。
MIL-STD-810H VS. 其他军用标准
强固式平板电脑和笔记本电脑适用于两个MIL-STD认证,包括MIL-STD-810H(前MIL-STD-810G)、MIL-STD-461G。MIL-STD-810H认证表示产品已通过严格的环境条件测试。其中包括包括极端温度、湿气、灰尘和冲击等近30个测试项目。获得MIL-STD-810H认证的设备经验证可在极端条件下运行,具有耐高温、防水、防尘、抗冲击等性能。
MIL-STD-461G认证则侧重于电磁(EM)兼容性,电磁干扰或流氓信号检测对于某些安全或通信保密行业非常关键。MIL-STD-461G对以下四个特定方面进行评估:
- 辐射发射
- 传导发射
- 辐射敏感度
- 传导敏感度
![](https://www.getac.com.cn/wp-content/uploads/2022/01/getac_infographi_SC2500.png)
MIL-STD-810H VS. 其他军用标准
强固式平板电脑和笔记本电脑适用于两个MIL-STD认证,包括MIL-STD-810H(前MIL-STD-810G)、MIL-STD-461G。MIL-STD-810H认证表示产品已通过严格的环境条件测试。其中包括包括极端温度、湿气、灰尘和冲击等近30个测试项目。获得MIL-STD-810H认证的设备经验证可在极端条件下运行,具有耐高温、防水、防尘、抗冲击等性能。
MIL-STD-810H標準包括以下測試:
![1-Low-Pressure-Altitude-2](https://www.getac.com.cn/wp-content/uploads/2021/12/1-Low-Pressure-Altitude-2.png)
低气压(海拔)
![2-High-Temperature-2](https://www.getac.com.cn/wp-content/uploads/2021/12/2-High-Temperature-2.png)
高温
![3-Temperature-Shock-2](https://www.getac.com.cn/wp-content/uploads/2021/12/3-Temperature-Shock-2.png)
低温
![4-Fluid-Contamination-2](https://www.getac.com.cn/wp-content/uploads/2021/12/4-Fluid-Contamination-2.png)
温度冲击
![5-Low-Temperature-2](https://www.getac.com.cn/wp-content/uploads/2021/12/5-Low-Temperature-2.png)
流体污染
![6-Solar-Radiation-Sunshine-1](https://www.getac.com.cn/wp-content/uploads/2021/12/6-Solar-Radiation-Sunshine-1.png)
太阳辐射(阳光)
![7-Rain-2](https://www.getac.com.cn/wp-content/uploads/2021/12/7-Rain-2.png)
淋雨
![8-Humidity-1](https://www.getac.com.cn/wp-content/uploads/2021/12/8-Humidity-1.png)
湿度
![9-Fungus-1](https://www.getac.com.cn/wp-content/uploads/2021/12/9-Fungus-1.png)
霉菌
![10-Salt-Fog-2](https://www.getac.com.cn/wp-content/uploads/2021/12/10-Salt-Fog-2.png)
盐雾
![11-Sand-and-Dust-1](https://www.getac.com.cn/wp-content/uploads/2021/12/11-Sand-and-Dust-1.png)
砂尘
![12-Explosive-Atmosphere-1](https://www.getac.com.cn/wp-content/uploads/2021/12/12-Explosive-Atmosphere-1.png)
爆炸性
环境
![13-Immersion-1](https://www.getac.com.cn/wp-content/uploads/2021/12/13-Immersion-1.png)
浸渍
![14-Acceleration-1](https://www.getac.com.cn/wp-content/uploads/2021/12/14-Acceleration-1.png)
加速度
![15-Vibration-1](https://www.getac.com.cn/wp-content/uploads/2021/12/15-Vibration-1.png)
振动
![16-Acoustic-Noise-1](https://www.getac.com.cn/wp-content/uploads/2021/12/16-Acoustic-Noise-1.png)
噪声
![17-Shock-1](https://www.getac.com.cn/wp-content/uploads/2021/12/17-Shock-1.png)
冲击
![18-Pyroshock-1](https://www.getac.com.cn/wp-content/uploads/2021/12/18-Pyroshock-1.png)
爆炸分离冲击
![19-Acidic-Atmosphere-1](https://www.getac.com.cn/wp-content/uploads/2021/12/19-Acidic-Atmosphere-1.png)
酸性环境
![20-Gunfire-Shock-1](https://www.getac.com.cn/wp-content/uploads/2021/12/20-Gunfire-Shock-1.png)
炮击冲击
![21-Combined-Environments-1](https://www.getac.com.cn/wp-content/uploads/2021/12/21-Combined-Environments-1.png)
综合环境
![22-Icing-Freezing-Rain-1](https://www.getac.com.cn/wp-content/uploads/2021/12/22-Icing-Freezing-Rain-1.png)
积冰/淋雨
![23-Ballistic-Shock-1](https://www.getac.com.cn/wp-content/uploads/2021/12/23-Ballistic-Shock-1.png)
弹道冲击
![24-Vibro-Acoustic-Temperature-1](https://www.getac.com.cn/wp-content/uploads/2021/12/24-Vibro-Acoustic-Temperature-1.png)
振动噪声/温度
![25-Freeze-Thaw-1](https://www.getac.com.cn/wp-content/uploads/2021/12/25-Freeze-Thaw-1.png)
冻结/融化
![26-Time-Waveform-Replication-1](https://www.getac.com.cn/wp-content/uploads/2021/12/26-Time-Waveform-Replication-1.png)
时域波形复现
![27-Rail-Impact-1](https://www.getac.com.cn/wp-content/uploads/2021/12/27-Rail-Impact-1.png)
铁路碰撞
![28-Multi-Exciter-Test-1](https://www.getac.com.cn/wp-content/uploads/2021/12/28-Multi-Exciter-Test-1.png)
多振动台试验
![29-Mechanical-Vibrations-of-Shipboard-Equipment-1](https://www.getac.com.cn/wp-content/uploads/2021/12/29-Mechanical-Vibrations-of-Shipboard-Equipment-1.png)
船载设备机械振动(类型I-环境、类型II-内部激励)
*有关完整的强固特性和认证,请查看产品技术规格
MIL-STD-461G的测试方法
MIL-STD-461G认证设备经过了对于电磁(EM)发射和敏感度的全面测试和评估。MIL-STD-461G认证包括了20个测试项目。这些测试项目采用了两位字母加三位数字的组合编号。可用字母包括:
- C-传导
- R-辐射
- E-发射
- S-敏感度
测试程序包括四个特定方面:
- 传导发射(CE)
- 辐射发射(RE)
- 传导敏感度(CS)
- 辐射敏感度(RS)

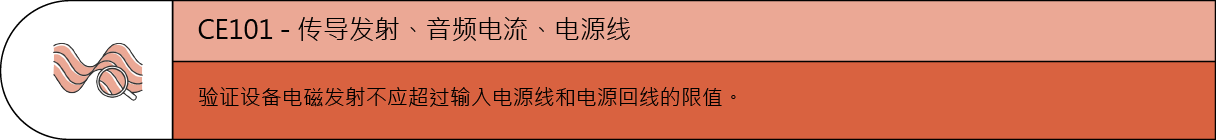

传导发射(CE)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CE101.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CE102.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CE103.png)

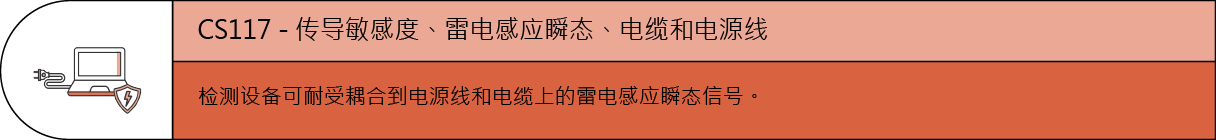

传导敏感度(CS)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS101.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS103.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS104.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS105.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS109.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS114.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS115.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS116.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS117.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/CS118.png)

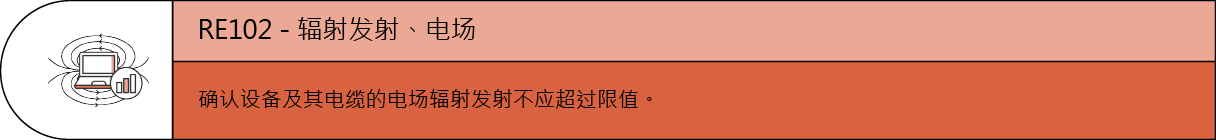

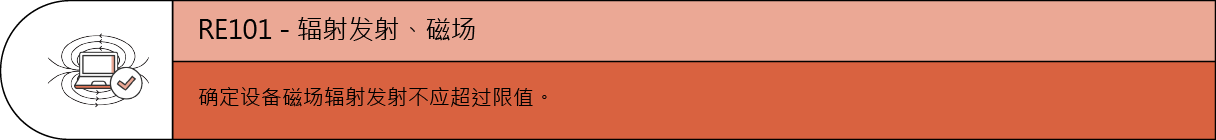

辐射发射(RE)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/RE101.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/RE102.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/RE103.png)
辐射敏感度(RS)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/RS101.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/RS103.png)
![](https://www.getac.com.cn/wp-content/uploads/2022/01/RS105.png)
MIL-STD-810H等级笔记本电脑和平板电脑的潜在应用领域
"使用Getac MIL-STD认证解决方案,让严苛环境下的工作变得更简单。我们的全强固式设备经验证可耐受极端条件;无论在野外、车内还是办公室,都能与您一起工作。 "
MIL-STD-810H认证的解决方案强固高效,可适用于:
- 极端环境:可能存在温度急剧变化、多尘、振动和冲击的场所。
- 常见意外:有时可能会出现洒出咖啡或设备跌落。
- 所有行业:Getac MIL-STD-810H等级设备足以应对所有艰苦行业。
